SR™ Casing Brush
SR™ Casing Brush is usually used with casing scraper to remove the debris……...
NON rotating Casing Brush Clean the full ID of the casing with robust bristles
The casing brush is a mechanical aid for cleaning wellbore casings.

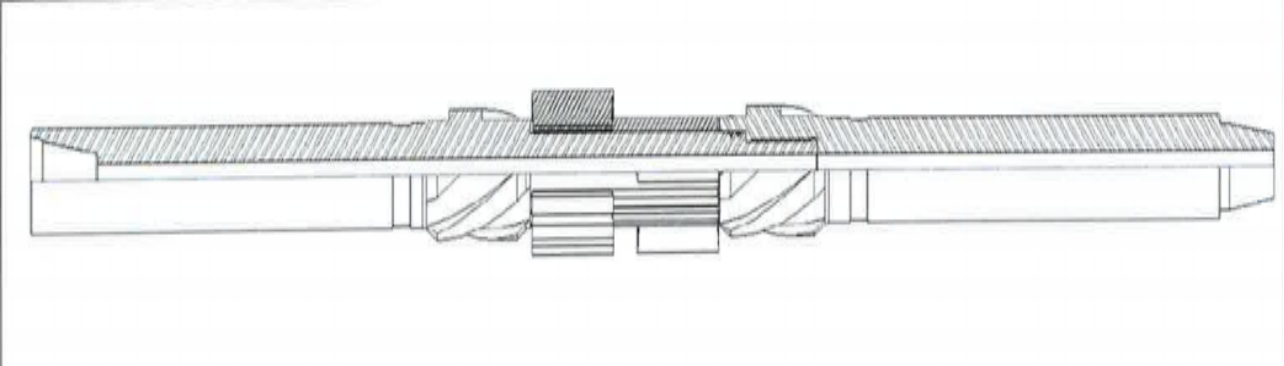

The brush consists of a one-piece body, nonrotating stabilizer sleeves, and a flexible, nonrotating lantern. While the lantern provides the force to contact and clean the interior diameter of the pipe and holds the bristles, the stabilizer sleeves protect the casing from wear and damage from the body as it rotates—and also protects the bristles from needless wear.
The spring steel bristle wires are mounted in the lantern. Brass bristles are also available for chrome casings.
Features
High-strength design
Single-piece, high-strength mandrel
Top- and bottom-mounted stabilizers for centralization
Connectionless internal design
Nonrotating stabilizer sleeves and lantern avoid wear or casing and bristle damage
Available in all common casing sizes
Advantages
Reduces NPT
Ensures surfaces are free of debris before running completion equipment
Cleans the entire 360° of pipe in any deviation
Nominal Size | 3.938in | ||||
Nominal and Checked Dimensions | |||||
Box Conn. | 2.375 REG | Internal Conn.1 | 1.938-4-2G(2S)STUB ACME | Pin Conn. | 2.375 REG |
Box OD | 3.125 in | MUT IC1 | 3520 ft.lbs | Pin OD | 3.125 in |
Box MUT | 3,400 ft.lbs | Tool Min.ID | 1000 in | Pin MUT | 3400 ft.lbs |
Overall Length | 69.6 in | Tool Drift Dla. | 0.875 in | Pin ID | 1000 in |
Upper Stabilizer OD | 3.938 in | Flexible OD | 4.968 in. | Lower Stabilizer OD | 3.938 in |
Mill OD | N/A in. | ||||
General Operational Information | |||||
Weight | 145 lbs | torsional yield | 5,149 ft.lbs | ||
TFA trough tool | 0.785 in2 | tensile yield | 185,897 lbs | ||
Temperature Rating | 350°F | Collapse Pressure | 39,813 psi | ||
TFA around tool | 6.820 in2 | Burst Pressure | 50,394 psi |
