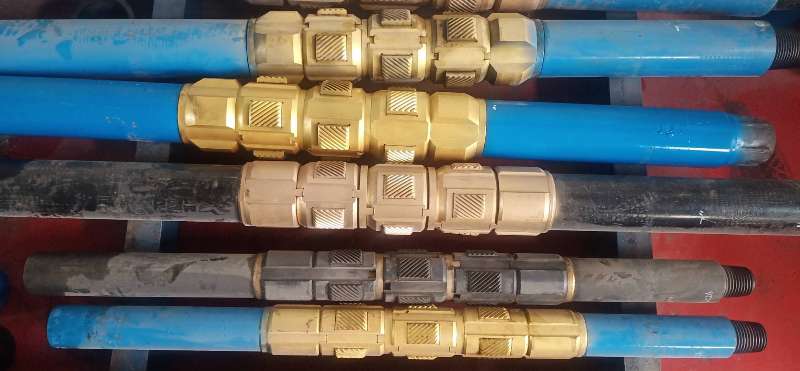

RIGID Sharp-Razor™ Casing Scraper

RIGID Sharp-Razor™ Casing Scraper

The RIDGE Sharp-Razor™ Casing Scraper developed for use in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment. Provides advanced wellbore cleanup in the post-perforating well phase, where a high degree of casing or liner ID smoothness through the perforated interval is required . Completely removes perforation burrs, preventing damage to completion equipment, including expandable screens/expandable pipe used in complex/smart completion . ...

PDF Download

Contact Us

RIGID Sharp-Razor™ Casing Scraper


Introduction


The RIDGE Sharp-Razor™ Casing Scraper developed for use in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment. Provides advanced wellbore cleanup in the post-perforating well phase, where a high degree of casing or liner ID smoothness through the perforated interval is required . Completely removes perforation burrs, preventing damage to completion equipment, including expandable screens/expandable pipe used in complex/smart completion .


Features


  • Robust enough to remove bigger and large volume burrs, cementing accessories.

  • Clean by rotation and up/down pipe movement.

  • Supplied with drill-pipe box up/pin-down connections .

  • Available in all common casing/ liner sizes.


Application


Mainly used in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment


Specifiaction


Sharp-Razor™ Series RIGID Sharp-Razor™ Casing Scraper DIMENSIONAL DATA
Nominal OD(in)Weight (PRf)Connection ECentralizer OD(mm) CScraper Cage OD (mm) DID(in) FLength (in) A
4-1/2"11.6-15.12-3/8 REG B*P3.78"4.05"0.7965
5"11-24.12-3/8 REG B*P3.94"4.56”0.7965
5-l/2"14-43.12-3/8 REG B*P4.33''5.03"169
6-5/8"20-323-1/2 REG B*P5.31"S.86170
7"26-353-1/2 REG B*P5.83"6.3”1.18''74
9-5/8"43-53.5NC50 B*P8.07"8.77"2.81"86
10-3/4"32.7S-85.36-5/8 REG B*P9.17"9.76”2.81"98
13-3/8"48-54.5-61-68 -726-5/8 REG B*P12.32''12.83"2.81"110
