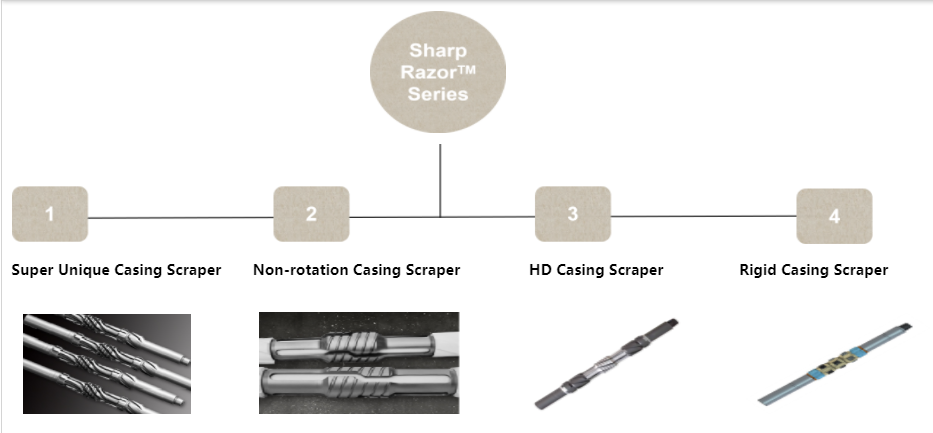

• SUPER Unique Sharp-Razor™ Scraper

Introduction

WELLBORE SUPER Unique Sharp-Razor™ Series is a heavy duty wellbore clean-up scraper suitable for all downhole conditions and with robust, high performance features.The scraper cage flexes like a spring, to conform to the casing internal surface, to mechanically remove hard debris from the casing.The alloy bronze bearings feature both axial and radial elements to allow extended rotation in harsh environments preventing tool and casing wear. The Heavy Duty version includes an integral string mill. The Standard Duty version comes with a plain external diameter.

Features

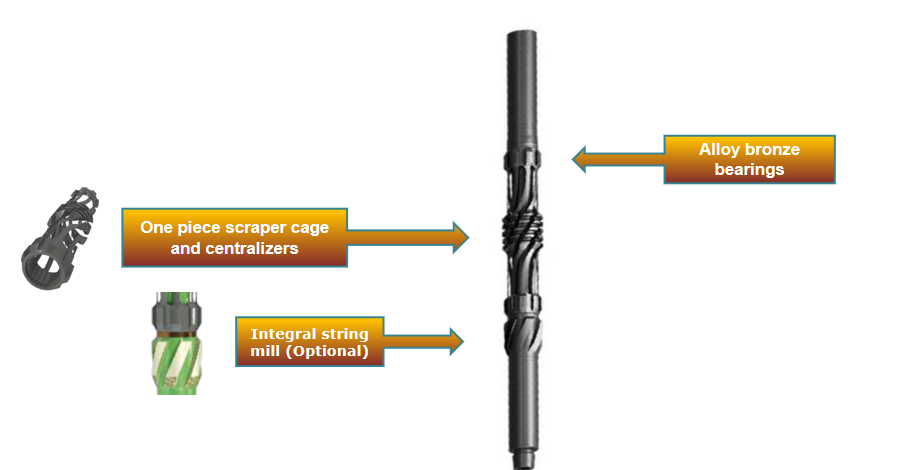

• Solid state scraper cage and centralizers, manufactured from a single billet without the need for springs, bolts or pads

• Non-rotating design with high performance alloy bronze bearings, compatible with high temperature and chemical applications

• Optional integral string mill with crushed carbide blades to remove cement

• Available with all API and premium dril pipe connections

Benifits

•  A properly executed wellbore clean-up mitigates risk during completion operations and the productivity of the well.

•  Prevent debris related premature packer setting while RIH

•  Assists in chemical cleans action

•  Prepare casing wall to ensure packer element sets and mitigate premature elastomer failure

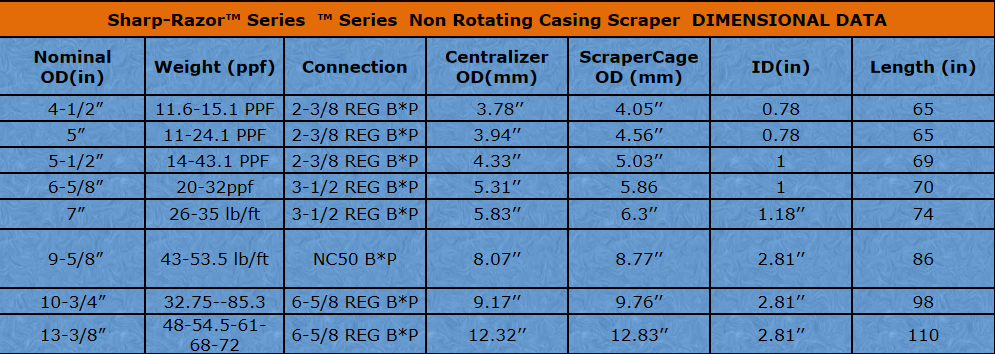

• Sharp-Razor™(SR) Non-rotating Casing Scraper

Introduction

WELLBORE Sharp-Razor™(SR) Non-rotating Casing Scraper used for wellbore cleanup and casing scraping operations, with the new-generation improvement in integral blade design, it is more effective, more robust and safer for most complex wellbore condition.

Application

• Removes cement sheath, burrs, and pipe scale

• Pre-completion wellbore clean-up

• Workovers and sidetracking

• Abandonment

• Drilling / milling cement plugs

Features

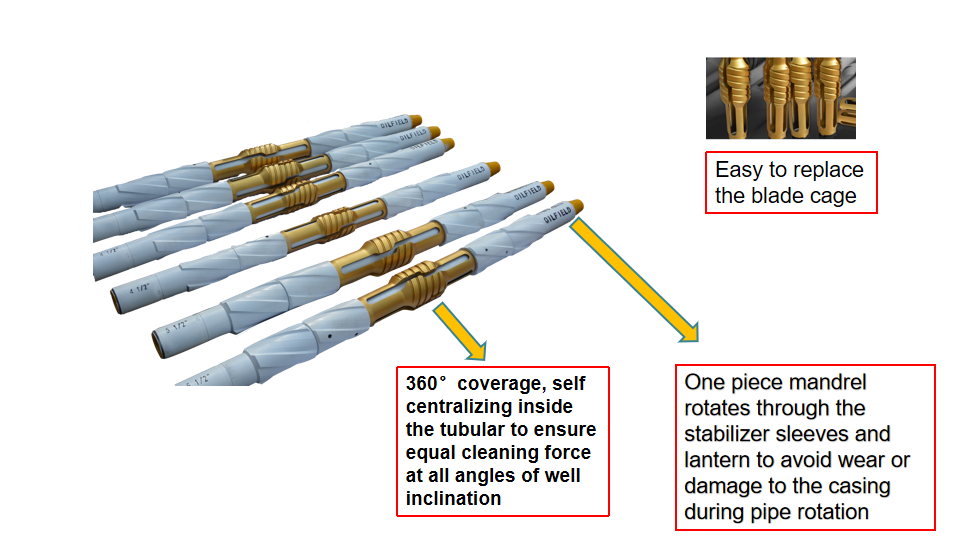

• Non-rotating, 360° coverage, self centralizing metal-bladed lantern

• Integral blade manufactured from a single billet, one piece mandrel.

• Optional mill ring for cement removing request.

• Available with all API and premium drill pipe connections

• Easy to replace the blade cage

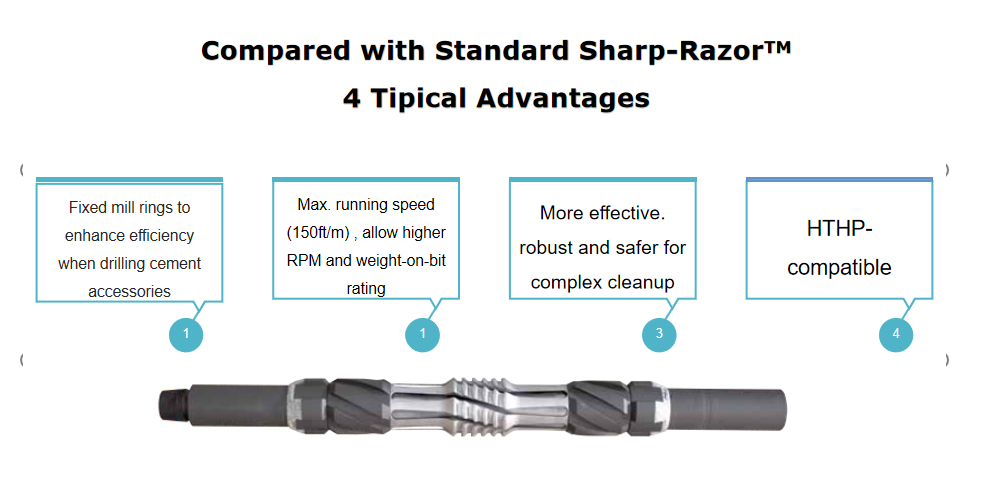

• Heavy Duty(HD) Sharp-Razor™ Casing Scraper

Introduction

The HD Sharp-Razor™ Casing Scraper consists of: a high-strength, one-piece mandrel and is designed to meet the demands of Complex wellbore cleanups. By allowing a higher RPM and weight-on-bit rating than the standard Shape-Razor device. The HD Sharp-Razor Casing Scraper unit is well suited for drilling up cement accessories commonly found inside the liner or casing.

Application

• Removes cement sheath, burrs, and pipe scale

• Pre-completion wellbore clean-up

• Workovers and sidetracking

• Abandonment

• Drilling / milling cement plugs

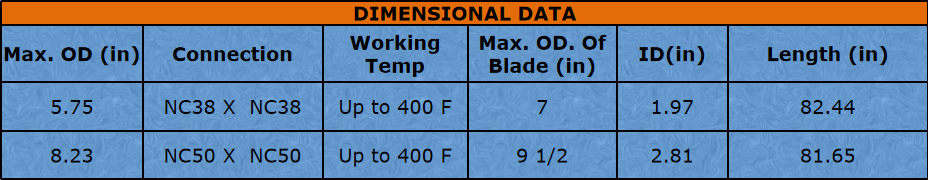

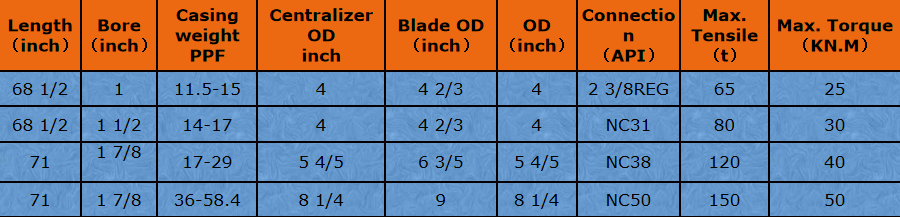

Techincal Data

•  RIGID Sharp-Razor™ Casing Scraper

Introduction

The RIDGE Sharp-Razor™ Casing Scraper developed for use in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment. Provides advanced wellbore cleanup in the post-perforating well phase, where a high degree of casing or liner ID smoothness through the perforated interval is required . Completely removes perforation burrs, preventing damage to completion equipment, including expandable screens/expandable pipe used in complex/smart completion .

Structure

The HD Sharp-Razor™ Casing Scraper consists of: a high-strength, one-piece mandrel and is designed to meet the demands of Complex wellbore cleanups. By allowing a higher RPM and weight-on-bit rating than the standard Shape-Razor device. The HD Sharp-Razor Casing Scraper unit is well suited for drilling up cement accessories commonly found inside the liner or casing.

Application

Mainly used in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment

Features

• Robust enough to remove bigger and large volume burrs, cementing accessories.

• Clean by rotation and up/down pipe movement..

• Supplied with drill-pipe box up/pin-down connections .

• Available in all common casing/ liner sizes

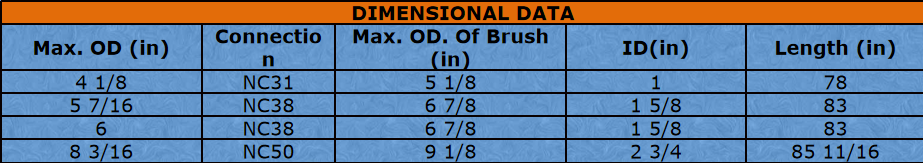

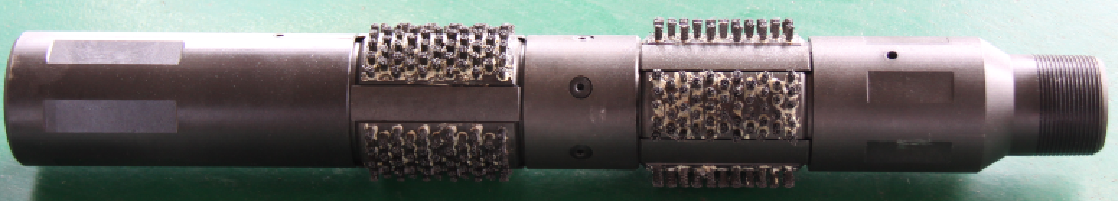

KrinBack™ Casing Brush

Introduction

KrinBack™ utilizes a unique lantern design that provides greater brush life. This lantern design also allows easy, remote location redressing when required, saving time and delivering a higher level of service. The tool's effective, robust, and flexible design allows for complex operations.

Features

• Brush cleaning life prolonged during rotation .

• Self-centralizing, flexible-brush lantern .

• Available in all common casing/ liner sizes.

• Supplied with drill-pipe box-up/ pin-down connections .

• Brush pads can easily be replaced on location

Giant-Mag™

Introduction

WELLBORE Giant-Mag™ is a wellbore clean-up magnet suitable for all downhole conditions and with robust, high performance features, is designed to recover large volumes of ferrous debris to ensure the integrity of the wellbore cleanup. The magnet features a large magnetic surface area along with discrete flow channels to combine higher magnet strength with greater volume to optimize recovery.

Features

• Compact design- Single piece mandrel.

• High strength rare earth magnets.

• Fixed stabilizer sleeve to provide stand off when POOH.

• Optional dedicated flow channel to prevent flow path restrictions when packed full of debris

Advantages

• Mainly used in perforated casing or liner to remove perforation burrs and to ensure the safe passage of completion equipment.

• Removable magnets for body inspection .

• Recovered material is easily removed on location.

• High temperature rating on magnets up to 350%F (177°C) .

• Debris channels allow for larger volume of ferrous material to accumulate.

Applications

Run separately or as part of a comprehensive wellbore clean-up, which designed to capture ferrous metal debris in the wellbore. or as an integral part of the drillstring during wellbore preparation operations.

Grand-Mix™ (GM) Combination casing cleaning tools

Introduction

WELLBORE Grand-Mix™ (GM) consists of the latest generation scraper, brush and high capacity magnet, combined them into a simplified and rugged tool, which has an integral magnet section to capture ferrous debris, scrapers to dislodge difficult to-remove debris, and brushes to disturb the sheath and any other fluid build-up on the inner wall of the casing or liner. The tool can be run in the inner production riser, casing, and liner to remove a combination of scale, rust, mud film, drilling debris, ferrous debris, and pipe dope.

Features

One tool carries scrapers, brushes, or magnets on the same mandrel.

Large flow area between magnets to capture large debris

Brush component can be readily redressed at remote locations

Available with any tubing connection to run directly on the completion tubing.

Applications

The Grand-Mix™ can be configured for any Casing and Tubing combination with matching metallurgy and connections
