SP Casing Brush
Ensure effective casing cleaning with high-performance tools

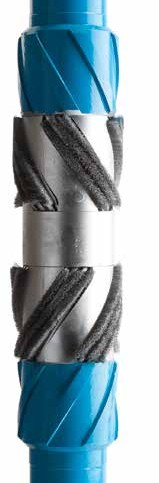

The Sharp Razor SP casing brush is a durable tool designed for deepwater, deep, and deviated well applications. It is used to brush and clean the interior diameter (ID) of casing and remove scale, rust, mud residue, and any other particles of debris. The tool can be run by itself or as an integral part of a complete wellbore cleaning and displacement system with circulation tools, scrapers, magnets, filters, and bit.
The casing brush features a one-piece mandrel design without any internal connections. The tensile and torque ratings of the tool are higher than those of the tool joint. This allows the tool to be used in deepwater wells, deep wells, or deviated wells in which higher tensile and torque rating are required.
One feature of the tool is its high allowable rotation speed. Allowing drillpipe to rotate up to 150 rpm significantly increases the cleaning efficiency and allows the tool to be used in the drilling or milling applications in which a high rotational speed is required.
The tool also provides large ID and annulus flow areas. It allows more effective circulation and displacement operations.
The non-rotational stabilizers and brush sleeve, plus the field-proven brush technology, prevent wear or damage to the casing wall, while allowing for maximum casing ID cleaning in straight or high-angled holes. The brush is not vulnerable to chemical or acid attack.
Specifications
Tensile rating: higher than the tensile rating of tool joints
Torque rating: higher than the torque rating of tool joints
Allowable rotation speed: 150 rpm
Applications
Deepwater wells
Deep wells
Deviated wells
Extended-reach wells
Wells with high dogleg severity
Features and Benefits
One-piece mandrel design with higher-than-tool-joints tensile and torque ratings
Significantly mitigates completion and production risks and costs
Non-rotating stabilizers and brushes
Effectively cleans well without damaging or wearing casing wall
Highest allowable rotation speed of 150 rpm
Increases cleaning efficiency
Large circulation areas
Improves circulation and displacement efficiency
360° casing coverage with helical brush
Increases cleaning efficiency
No exposed fasteners that could vibrate loose
Improves operational reliability
